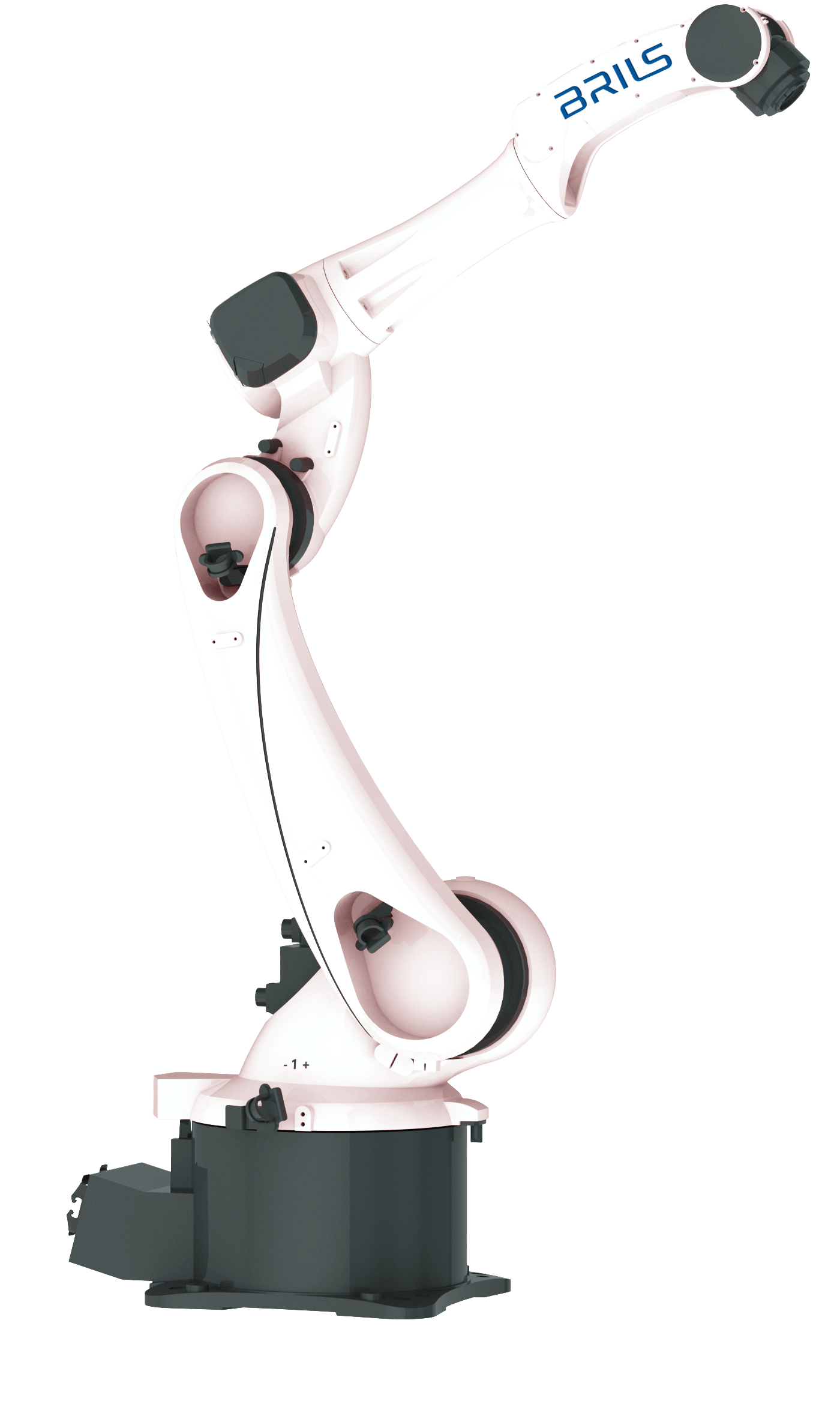

Industrial Robot

BRS1220W

Robot Payload: 12kg, Working Radius: 2010mm

Flexible Layout

The hollow-type arm design effectively reduces interference with workpieces,
enhancing operational flexibility in complex environments.
Ensures optimal working posture even in confined spaces.

High Precision & Efficiency

Powered by advanced technology, it delivers high precision, speed, and stability, even in fast-paced production.
Capable of adapting to diverse and extreme manufacturing conditions.

Lightweight Design

Utilizes a specialized aluminum alloy casting process for automotive engines,
combining a lightweight body with powerful drive force to maintain accuracy even at extreme speeds.

Intelligent Control

Features an advanced intelligent control system for easy maintenance and management.

Applications

Welding, bolting & fastening, inspection, assembly, bonding, lubrication, loading & unloading.

Floor Installation

Ceiling Installation

Model		BRS1220W
Payload		12kg
Repeatability		± 0.03mm
Max. Working Radius		2010mm
Drive Range	J1	± 180°, 200°/s
	J2	± 90°, -165°, 220°/s
	J3	+160°, -85°, 220°/s
	J4	± 180°, 400°/s
	J5	+145°, -160°, 430°/s
	J6	± 360°, 720°/s
Robot Arm Allowable Torque		23N·m / 0.4kg·㎡ 17N·m / 0.35kg·㎡ 9N·m / 0.1kg·㎡
Body Weight		250kg
Power Capacity		3KVA
IP Rating		IP65
Wiring Method		Internal Cable Wiring
Pre-installed Cable (1~4 Axes)		16cores, single core wire diameter 0.2mm
