Heavy duty item palletizing and depalletizing robot automation system
- Productivity Improvement
- Heavy Load Automation
- Work Safety

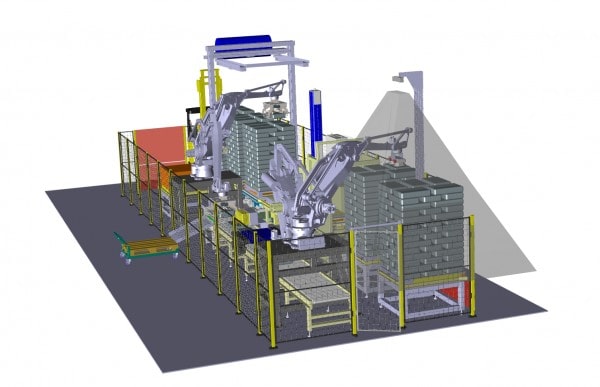

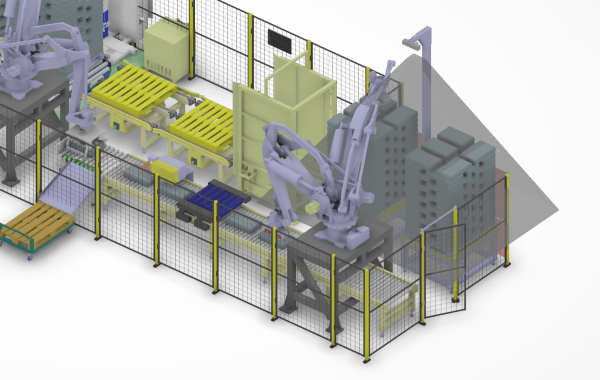

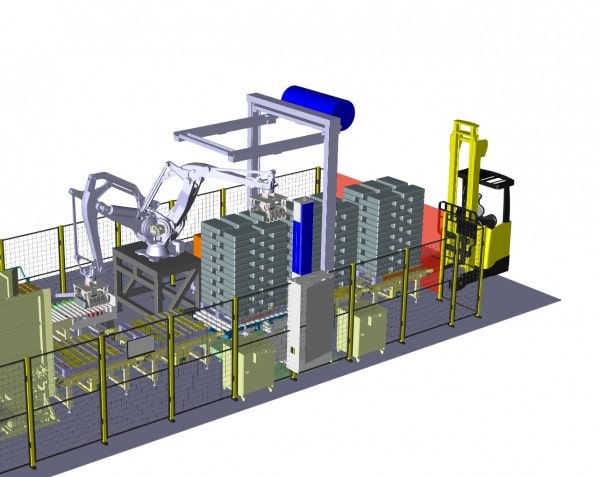

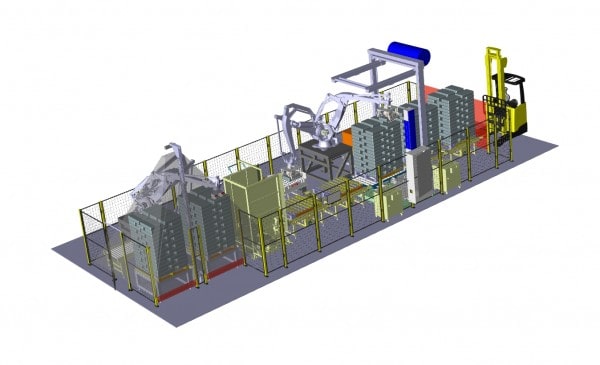

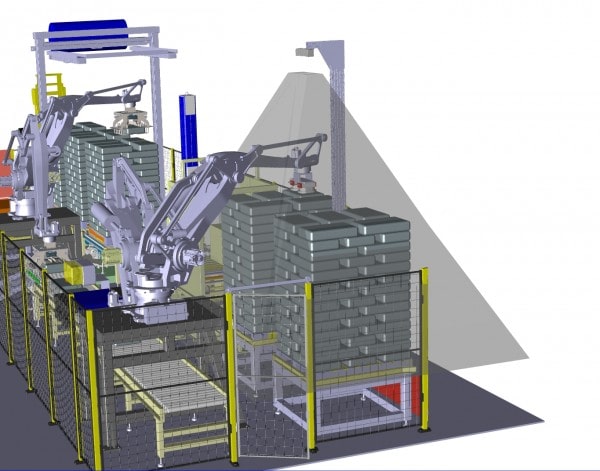

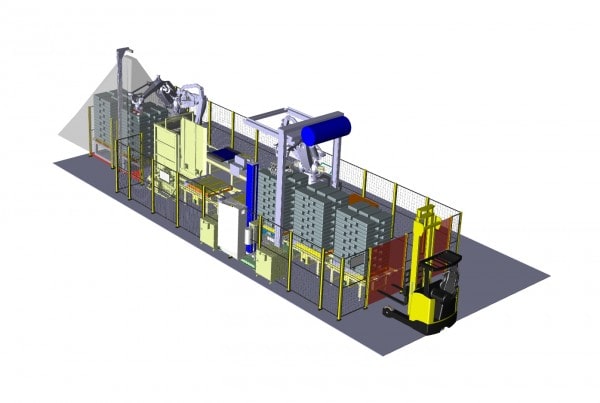

It is a robot automation system that applies 3D-based sorting conveyors and palletizing/depalletizing technology to load heavy products.
It solves the problems of work difficulty and fatigue caused by repeated movements during heavy loading work, effectively maximizing productivity. Safety fences and light curtains are installed to eliminate work safety insensitivity and are designed to automatically stop when entering the robot area, providing a safe working environment for workers.
The introduction of automation increases work efficiency through new technology acquisition and data analysis.
Category | Details |
---|---|
Main Application Field | Automation Industry |
Product Type | Brils-A-00 / Palletizing and Depalletizing Automation System |
Size and Weight | 11090mm X 3140mm X 2370mm |
Frame Structure | High-Strength Aluminum Profile Structure |
Utility | 110~220 VAC, 1Ph, 50/60 Hz, 50A |
Safety Configuration | Safety PLC & Relay, Safety Fence & Light Curtain |
